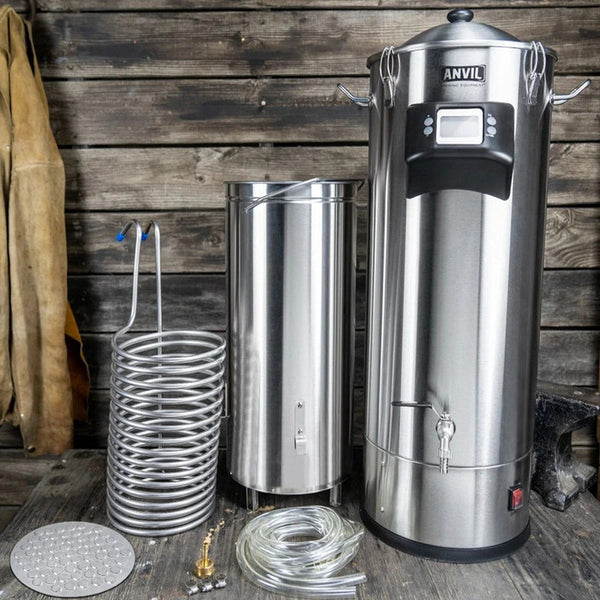

Anvil Foundry 10.5 Gallon Electric Brewing System

The ANVIL Foundry is the most versatile all-in-one brewing system available, at 10.5 gallons it is perfect for 5-6.5 gallon batches. From the triple element low watt density dual voltage heaters for blazing fast heating speeds to the unique grain basket, you won't find a more powerful feature-rich product.

Product Details

  • Switchable Between 120V 1600W, 13A and 240V 2800W, 12A for Faster Heating & Better Boils
  • Unique High Flow Grain Basket with 150% More Perforations to Virtually Eliminate Stuck Mashes
  • Large Capacity Increases Efficiency and Grain Capacity
  • Double Wall Insulation Maintains Mash Temps and Increases Heating Speeds
  • Ultra Low Watt Density, Triple Element Heaters – Won’t Scorch
  • Linear Digital Power Control and Solid-State Switching for Fine Tuning your Boil
  • Turbo 500 Distillation Ready – refer to the manual for more info
  • Includes High Capacity Stainless Immersion Chiller with Hoses & Fittings
  • External Pump Won’t Plug and is Easy to Clean. No Need to Disassemble Entire Unit! Use for Other Pumping Needs too
  • Dimensions
    Tank Diameter = 12.5 inches
    Distance Across the Handles = 17 inches
    Height of Base Unit = 29.75 inches
    Lid = 3.25 inches
    Total Height = 33 inches
    Spigot Height from Base = 7 inches
    Shipping Weight = 38 lbs
  • Wattage
    120V = 1600 watts
    240V = 2800 watts


Anvil Foundry Manual
